Case
A 64-year-old male with a past medical history of hypertension and
diabetes presented at our emergency room (ER) with complaints of fever,
non-productive cough with pleuritic chest pain for one week. He failed
outpatient oral antibiotic therapy and was sent to the hospital for
further management. In the ER, he was febrile up to 102oF and had leukocytosis of 15.6 X 109/L with neutrophilia of 90.3%. A bedside ultrasound was performed which is shown in video 1.

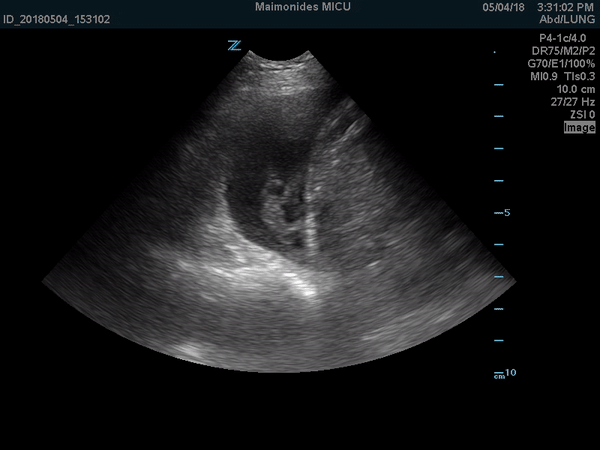

Video 1: Ultrasound video on a phased array probe shows the swirling movement of the cellular debris, fibrin strands and septations in the pleural cavity.
Question
What is the most appropriate test that should be requested for this patient?
A. Thoracentesis followed by antibiotics B. Non-invasive positive pressure ventilation for atelectasis. C. Diuresis with intravenous furosemide. D. Needle decompression of tension pneumothorax
Answer
A. Thoracentesis followed by antibiotics
Discussion
The patient was found to have pneumonia in the right lower lobe,
which resulted in a parapneumonic effusion. Parapneumonic effusions
occur due to increased passage of interstitial fluid as a result of
pneumonia and are exudative in nature. Parapneumonic effusions can be
further classified as uncomplicated, complicated and empyema.
Complicated pleural effusions appear as exudative effusions on lung
ultrasounds and have a non-homogenous echogenic pattern due to cellular
debris, fibrin strands and septations. Cardiac and respiratory movements
lead to swirling movements of these cellular debris, fibrin strands and
septations, giving us a dynamic presentation of pleural effusion on
ultrasound imaging. The presence of cellular debris and septations in
parapneumonic effusions may indicate the presence of empyema or a
complicated parapneumonic effusion which requires drainage and a longer
duration of antibiotics.(1)
The patient demonstrated clinical signs of infection with an
exudative unilateral effusion and therefore would not require any of the
above-mentioned management strategies except for thoracentesis and
antibiotics. Noninvasive positive pressure ventilation was deemed
non-beneficial as the atelectasis of the lung was as a result of pleural
effusion. Diuretics for pleural effusions are helpful only when the
effusion is due to heart failure or pathologies which lead to increased
hydrostatic pressure within the pulmonary vasculature, which were not
the causes in our case. Such effusions are generally bilateral and
transudative in nature. The patient did not have a pneumothorax so did
not require needle decompression.
Bedside lung ultrasounds (LUS), when performed by experienced
physicians, are more sensitive than a chest radiograph (CXR) in the
diagnosis of a pleural effusion, having a sensitivity of 100% compared
to CXR which is only 65%.(2) LUS has the ability of detecting pleural
effusions as small as 3-5 ml with an added advantage of defining the
complexity of the effusion better than a chest computed tomography (CT)
(3).
In order to identify a pleural effusion, intensivists must first
locate important anatomical landmarks which include the chest wall,
diaphragm and sub-diaphragmatic structures, such as the spleen or the
liver and the lung (Figure 1). Once identified, the effusion can be
further described by its echogenicity and quantification.
Figure 1: Anechoic space above the diaphragm with visible linear echogenic septations.
Transudative effusions are generally anechoic. However, a very
cellular transudative effusion can be homogenously echoic (4).
Exudative effusion, on the other hand, can be homogenously echoic or
non-homogenous echoic due to cellular debris, fibrin strands and
septations like in the case described.
LUS can help aid management of the pleural effusion primarily by allowing quantification and echogenic classification of the pleural effusion. Pleural effusions may be quantified into small, moderate and large effusion categories. However, for an accurate estimation, the following formula can be used: volume of pleural fluid in milliliters = 20 × (distance between visceral and parietal pleura in millimeters).(5) Thoracentesis remains the mainstay in management of parapneumonic pleural effusions, empyema and hemothorax.
